Radiation Shielding : |
GAMMA / X-RAY RADIATION SHIELDING PRODUCTS |
|
|
. |
|
Flexible Gamma Radiation Shielding :
X-RAY PROTECTIVE FLEXIBLE SHEET FOR APRONS |
|
X Ray Protective Flexible Sheets are used in
medical industry. They are used for
manufacturing of Aprons for X-ray workers &
patients. These sheets are manufactured having
Pb equivalence of 0.125, 0.25, 0.35, 0.50, 0.80
& 1.00.
|
|
 |
|

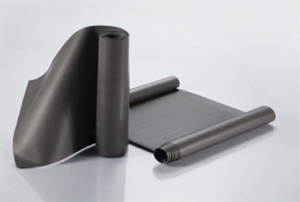

X-Ray Protective Flexible Sheet |
|
|
Carrier
polymer : Chloroprene base (neoprene) |
GRADE :
BNPLR – 43 (SP. GRAVITY 4.0 GM/CC) |
Size
available: - 1200 mm width in long length |
|
|
PB EQUIVALENCE |
THICKNESS OF THE SHEET |
WT / SQ MTR
(approx) KGS. |
WT / LINEAR MTR @ 1200mm
WIDTH (approx) KGS |
|
0.25 |
0.90 +/- 0.10mm |
3.60 |
4.30 |
|
0.35 |
1.30 +/- 0.10mm |
5.20 |
6.20 |
|
0.50 |
1.80 +/- 0.20mm |
7.20 |
8.60 |
|
0.80 |
2.70 +/- 0.20mm |
10.80 |
13.00 |
|
1.00 |
3.40 +/- 0.20mm |
13.60 |
16.30 |
|
|
|
|
Carrier
polymer : Chloroprene base (neoprene) |
GRADE :
BNPLR – 61 (SP. GRAVITY 6.0 GM/CC) |
Size
available: - 1200 mm width in long length |
|
|
PB EQUIVALENCE |
THICKNESS OF THE SHEET |
WT / SQ MTR
(approx) KGS. |
WT /
LINEAR MTR @ 1200mm WIDTH (approx) KGS |
|
0.25 |
0.60 +/- 0.10mm |
3.60 |
4.30 |
|
0.35 |
0.80 +/- 0.10mm |
4.80 |
5.70 |
|
0.50 |
1.10 +/- 0.20mm |
6.60 |
7.90 |
|
0.80 |
1.60 +/- 0.20mm |
9.60 |
11.50 |
|
1.00 |
2.00 +/- 0.20mm |
12.00 |
14.40 |
|
|
|
|
Carrier
polymer : EPDM base |
GRADE :
BEPLR – 40 (SP. GRAVITY 4.0 GM/CC) |
Size
available: - 1200 mm width in long length |
|
|
PB EQUIVALENCE |
THICKNESS OF THE SHEET |
WT / SQ MTR
(approx) KGS. |
WT /
LINEAR MTR @ 1200mm WIDTH (approx) KGS |
|
0.25 |
0.90 +/- 0.10mm |
3.60 |
4.30 |
|
0.35 |
1.30 +/- 0.10mm |
5.20 |
6.20 |
|
0.50 |
1.80 +/- 0.20mm |
7.20 |
8.60 |
|
0.80 |
2.70 +/- 0.20mm |
10.80 |
13.00 |
|
1.00 |
3.40 +/- 0.20mm |
13.60 |
16.30 |
|
|
|
|
Carrier
polymer : Natural Rubber base |
GRADE :
BNRLR – 40 (SP. GRAVITY 4.0 GM/CC) |
Size
available: - 1200 mm width in long length |
|
|
PB EQUIVALENCE |
THICKNESS OF THE SHEET |
WT / SQ MTR
(approx) KGS. |
WT /
LINEAR MTR @ 1200mm WIDTH
(approx) KGS |
|
0.25 |
0.90 +/- 0.10mm |
3.60 |
4.30 |
|
0.35 |
1.30 +/- 0.10mm |
5.20 |
6.20 |
|
0.50 |
1.80 +/- 0.20mm |
7.20 |
8.60 |
|
0.80 |
2.70 +/- 0.20mm |
10.80 |
13.00 |
|
1.00 |
3.40 +/- 0.20mm |
13.60 |
16.30 |
|
|
|
|
|
Feature : |
|
Extremely soft,
thin & flexible lead rubber sheet
Assures a consistent high radiation protection
throughout the entire product life time
Maximum used as multiply layers for optimal body
protection
High attenuation factor
Easy to fold, cut, hang & stitch
Used as adhesive bond with plywood for multi
applications
|
|
Size Available : |
| |
|
120 cm wide in 2 mtr, 5mtr & 10 mtr long
rolls |
|
|
|
Thickness Available : |
|
| |
|
Depending upon Pb equivalence.
|
|
|
|
Application : |
|
| |
|
Finds applications in Research Labs &
Hospitals |
Used to
manufacture X-ray Aprons like Front
Aprons |
|
Protective
Skirts & Vest |
Double
Apron |
|
Surgeon
Apron |
Wrap Apron |
|
Protective Gloves |
Half Apron |
|
Protective Cap |
Patient Cover |
|
Flexible Gonad Shield |
Ovarian Shield |
|
Thyroid Shield, etc |
|
|
|
|
|
|
